Caméra Exterieur / Caméra IP / Vidéosurveillance
SKU: SKU-073

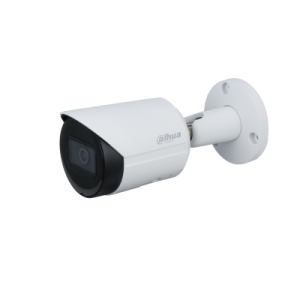

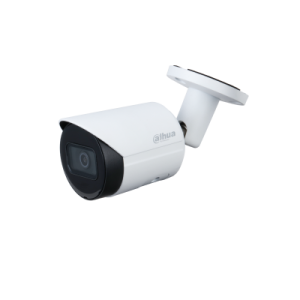

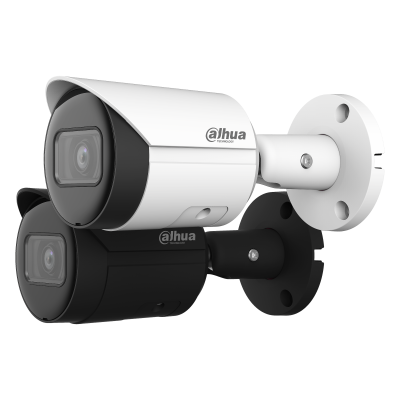

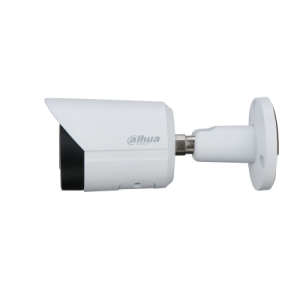

The Dahua DH-IPC-HFW2531SP-S-S2 is a compact 5MP network bullet camera designed for dependable day and night video surveillance.
It is built for clear monitoring in a wide range of environments, combining high resolution imaging with efficient compression and intelligent video functions to help capture useful detail while reducing storage and bandwidth demands.
Its integrated infrared illumination supports round the clock operation, while wide dynamic range and noise reduction technologies help maintain image clarity in scenes with difficult lighting or low light conditions.
With a durable weather resistant metal housing and support for both 12V DC and PoE, this camera is well suited to professional security installations for homes, businesses, entrances, walkways, and perimeter coverage.
| Part Number | DH-IPC-HFW2531SP-S-S2 |
|---|---|
| Camera Type | 5MP Lite IR Fixed-focal Bullet Network Camera |
| Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
| Effective Pixels | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s to 1/100000 s |
| Minimum Illumination | 0.008 Lux@F1.6 |
| IR Distance | 30 m (98.43 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 1 |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8 mm, 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View, 2.8 mm | Diagonal 132.0°, Pan 103.0°, Tilt 71.0° |
| Field of View, 3.6 mm | Diagonal 110.0°, Pan 84.0°, Tilt 58.0° |
| Iris Type | Fixed aperture |
| Close Focus Distance, 2.8 mm | 0.9 m (2.95 ft) |
| Close Focus Distance, 3.6 mm | 1.6 m (3.61 ft) |
| DORI Distance 2.8 mm | Detect 56 m, Identify 5.6 m, Observe 22.4 m, Recognize 11.2 m |
| DORI Distance 3.6 mm | Detect 80 m, Identify 8.0 m, Observe 32.0 m, Recognize 16.0 m |
| IVS Analytics | Intrusion, Tripwire |
| Video Compression | H.264, H.264B, H.265, MJPEG |
| Smart Codec | Yes |
| Main Stream | 2592 × 1944 (1 fps to 20 fps), 2688 × 1520 (1 fps to 25/30 fps) |
| Sub Stream | 704 × 480 (1 fps to 30 fps), 704 × 576 (1 fps to 25 fps) |
| Stream Capability | 2 streams |
| Resolution | 1.3M (1280 × 960), 1080p (1920×1080), 2304×1296, 2592×1944, 2688×1520, 3M (2048×1536), 720p (1280×720), CIF (352×288/352×240), D1 (704×576/704×480), VGA (640×480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate, H.264 | 32 Kbps to 8192 Kbps |
| Video Bit Rate, H.265 | 12 Kbps to 8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto, manual, natural, outdoor, regional custom, street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network Port | RJ-45 (10/100 Base-T) |
| Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, Multicast, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, 802.1x, IPv4, IPv6, NFS, RTMP, SFTP |
| Interoperability | CGI, Genetec, Milestone, ONVIF (Profile S, P2P, Profile G, Profile T) |
| User/Host | 20 |
| Edge Storage | NAS, Dahua Cloud, FTP, Micro SD Card support max. 256 GB, SFTP |
| Browser | Chrome, Firefox, IE |
| Management Software | DMSS, DSS, Smart PSS |
| Mobile Phone | Android, iOS |
| Certifications | CE-EMC 2014/30/EU, CE-LVD EN60950-1, FCC 47 CFR Part 15 Subpart B, UL/CUL UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 5.6W |
| Operating Conditions | -40°C to +60°C, less than or equal to 95% RH |
| Storage Temperature | -40°C to +60°C |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 166.2 mm × Φ70 mm |
| Weight | 0.48 kg |
