5MP / Analog CCTV Camera / HDCVI Cameras / Lite Series
SKU: SKU-070

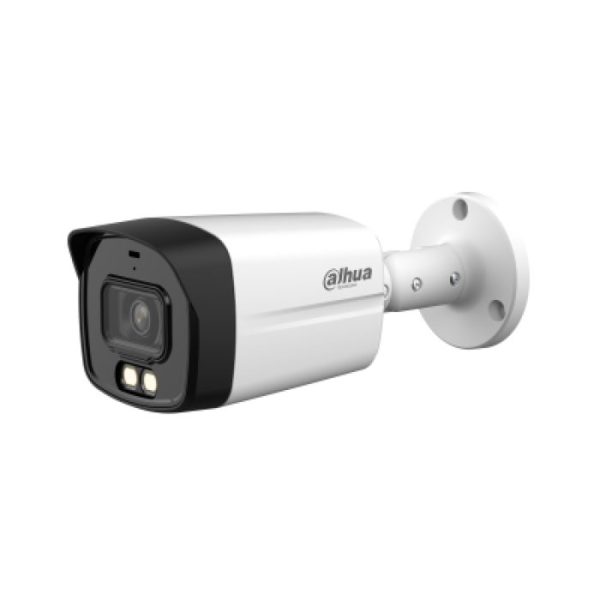

Dahua DH-HAC-HFW1509TLMP-IL-A is a 5MP smart dual light bullet camera designed for dependable day and night surveillance in residential and small business environments. It combines high resolution video capture with HDCVI convenience, making it a practical choice for upgrades that continue using coaxial cabling.
The camera is built to deliver clear imaging in challenging scenes with true WDR, noise reduction, and adaptive image tuning. Its dual light design helps improve visibility at night while reducing unnecessary light pollution by switching illumination modes intelligently when used with compatible recorders.
Audio support and multi format output add flexibility for a wide range of CCTV installations. With its weather resistant construction and straightforward fixed focal design, this Dahua model is suited to perimeter monitoring, entry points, driveways, and general outdoor coverage where reliable performance is essential.
| Product Type | 5MP Smart Dual Light Bullet Camera |
|---|---|
| Installation | Ceiling-mount, vertical pole mount, Wall-mount |
| Part Number | DH-HAC-HFW1509TLMP-IL-A |
| Pixel | 5MP |
| Image Sensor | 5MP CMOS |
| Max Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s to 1/100000 s |
| Minimum Illumination | 0 lux (Illuminator on), 0.0001 lux@F1.0 (B/W, 0.001 lux@F1.0 (Color, 30 IRE) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 40 m, Warm light: 40 m |
| Illuminator On/Off Control | Auto, manual |
| Illuminator Number | 2 IR lights, 2 warm lights |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Optional Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | 3.6 mm: H: 89°, D: 104°, V: 47° |
| Close Focus Distance | 3.6 mm: 2.2 m |
| DORI Distance | 3.6 mm: Detect 78.0 m, Identify 7.8 m, Observe 31.2 m, Recognize 15.6 m |
| Video Frame Rate | CVI, 1080p@25 fps, 4M@25 fps, PAL: 5M@25 fps |
| Video Output Formats | AHD, CVBS, CVI, TVI switchable |
| Resolution | 1080P (1920 × 1080), 4M (2560 × 1440), 5M (2880 × 1620), 960H (960 × 576/960 × 480) |
| Day/Night | Auto (ICR), B/W, Color |
| BLC | BLC, HLC, HLC-Pro, WDR |
| WDR | 120 dB |
| White Balance | Auto, Area white balance |
| Gain Control | Auto, manual |
| Noise Reduction | 3D NR |
| Defog | Electronic defog |
| Digital Zoom | 4× |
| Mirror | Yes |
| Privacy Masking | Off/On, rectangle, 8 areas |
| Illumination Mode | IR Mode, Smart IR&WL, WL Mode |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in MIC |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | LED on), Max 5.7 W (12 VDC |
| Operating Temperature | -40 °C to +60 °C |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | -40 °C to +60 °C |
| Protection | IP67 |
| Casing Material | Metal front cover + plastic rear barrel + metal bracket |
| Product Dimensions | 198.4 mm × 80.2 mm × 76.2 mm |
| Net Weight | 0.34 kg |
| Certifications | CE, FCC, UL |
