Mesh Wi-Fi Systems / Networking
SKU: M1200(2-Pack)

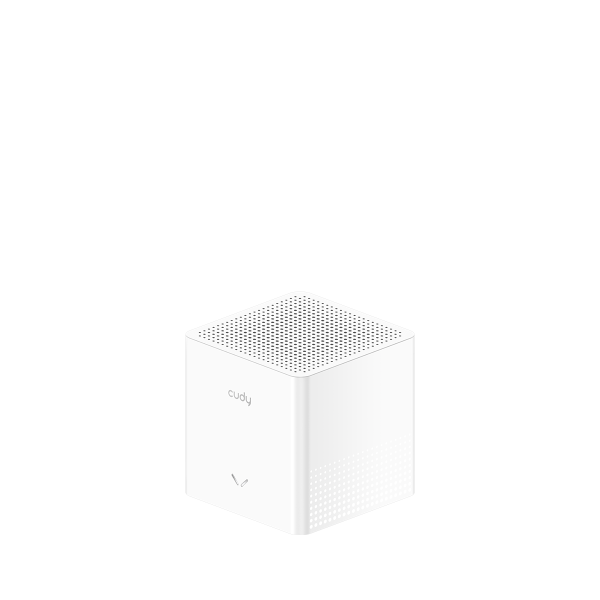

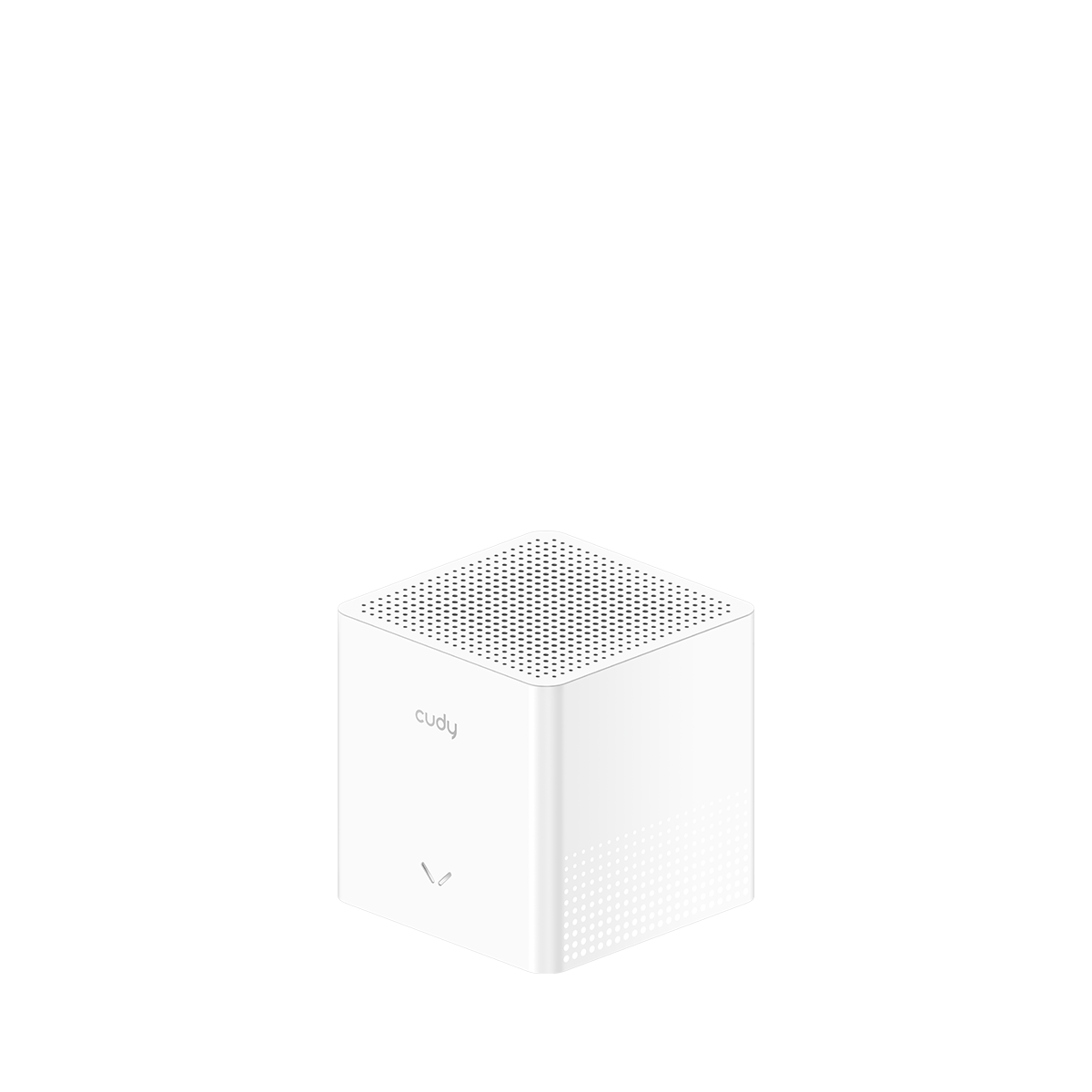

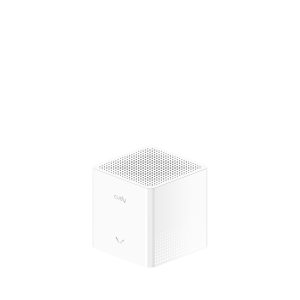

The Cudy M1200 AC1200 Mesh Wi Fi System 2 Pack is designed to bring reliable wireless coverage to larger homes with a simple whole home mesh setup.
Once one unit is configured, the additional unit can join the mesh automatically, helping create a more consistent connection as you move from room to room. The dual band design delivers dependable everyday performance for streaming, browsing, video calls, and general family internet use.
Cudy also adds useful networking features that make this system more flexible for home users, including guest networking, dynamic DNS support, VPN capabilities, and app based management. It is a practical solution for users who want broader coverage and easier Wi Fi management without moving to a more complex networking setup.
| Brand | Cudy |
|---|---|
| Product Type | Mesh System |
| Model | M1200 2.0 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wireless standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Signal rate | 300Mbps (2.4 GHz), 867Mbps (5 GHz) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Frequency | 2.4 GHz, 5 GHz |
| Antenna type | Internal |
| Antenna Direction Type | Omni-directional |
| Antennas quantity | 2 |
| Antenna | 2 × Internal Omni-Directional Antennas |
| 5GHz antenna max gain | 5.9 dBi |
| 2.4GHz antenna max gain | 3.5 dBi |
| Ports | 1 × 10/100Mbps LAN Port, 1 × 10/100Mbps WAN Port |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet WAN | Yes |
| DC-in Jack | Yes |
| Button | Reset Button, Pair Button |
| Flash memory | 16 MB |
| Flash | 128Mbit (16MB) |
| Internal memory | 128 MB |
| DDR | 1Gbit (128MB) |
| CPU | 580MHz single core, MIPS24KEC |
| Transmit power | <23dBm(5.15 GHz~5.25 GHz), CE: <20dBm(2.4 GHz), FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| Transmitting power (FCC) | 30 dBm |
| Transmitting power (CE) | 20 dBm |
| Wireless modes | Enable/Disable Wireless Radio, WMM |
| Wireless security | WEP, WPA-PSK/WPA2-PSK, WPA/WPA2 |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| DHCP Client | Yes |
| DHCP Server | Yes |
| Port Forwarding | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| VPN Support | PPTP/L2TP/OpenVPN/WireGuard |
| VPN | VPN Server and VPN Client Support |
| Product colour | White |
| Number of devices supported | 100 |
| Maximum coverage | 278.0000 m² |
| Coverage | 000 sq.ft, Up to 3 |
| Reset button | Yes |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| External Power Supply | 12 V / 1 A |
| Number of products included | 2 pc(s) |
| Number of units included | 2 pc(s) |
| Ethernet cable included | Yes |
| AC adapter included | Yes |
| Package Contents | 2-Pack AC1200 Mesh Router, Power Adapter, Quick Installation Guide, RJ45 Ethernet Cable |
| System Requirements | MAC OS, NetWare, UNIX or Linux, Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11 |
| Browser support | Chrome 20.0, Firefox 12.0, Internet Explorer 11, or other Java-enabled browser, Safari 4.0 |
| WAN type | Dynamic IP/Static IP/PPPoE |
| Internet Protocols | IPv6 |
