Mesh Wi-Fi Systems / Networking
SKU: M1300(3-PACK)

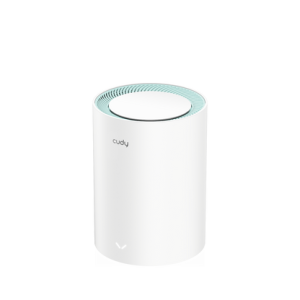

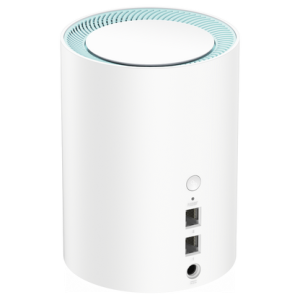

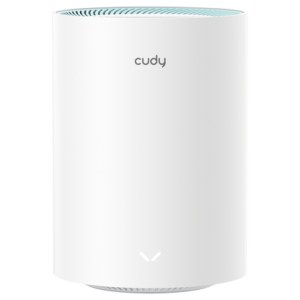

Cudy M1300 AC1200 Gigabit Mesh Wi-Fi System 3-Pack is built to deliver dependable whole home wireless coverage for larger living spaces. The three unit mesh design helps keep phones, tablets, computers, and smart home devices connected as you move from room to room, while dual band Wi-Fi 5 performance supports everyday streaming, gaming, and browsing with stable speeds.
This system is designed for simple deployment, with one unit set up first and the remaining units syncing automatically. Gigabit Ethernet connectivity adds flexibility for wired devices and backhaul connections, while roaming features help maintain a more seamless experience throughout the home.
Cudy also equips the M1300 with advanced networking features that go beyond basic home Wi-Fi. Support for VPN functions, guest networking, and flexible operating modes makes it a practical choice for users who want broad coverage, straightforward management, and more control over their home network.
| Brand | Cudy |
|---|---|
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Installation | Desktop |
| Model Version | M1300 3.0 |
| Wi-Fi Speed | 867 Mbps + 300 Mbps |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams |
| Wi-Fi Antennas | 4× Internal |
| 5 GHz Antennas | 2× Internal |
| 2.4 GHz Antennas | 2× Internal |
| CPU | 880 MHz Dual-Core, MIPS1004Kc |
| Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 |
| Gigabit RJ45 Ports | 2 |
| Ethernet Notes | Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode |
| Power Input Type | DC Jack |
| Power Methods | DC |
| Power Input | 12V⎓1A |
| Power Adapter In the Box | 50/60Hz, Input: 100-240V~, Output: 12V⎓1A |
| Range Performance | Max: 170 m (558 ft) |
| Wall Performance | One concrete wall with thickness < 20 cm (7''), Two wooden walls with thickness < 10 cm (4'') |
| Indoor Coverage Reference | 3 Pack: 220 m² (2400 sq ft) |
| Beamforming | Yes |
| Fast Roaming | Yes |
| MU-MIMO | Yes |
| Max Wi-Fi Modulation | 256-QAM |
| Wi-Fi Efficiency | MU-MIMO |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz |
| Max Capacity | 128 |
| Recommended Client Upper Limit | 50 |
| Max Wi-Fi Channel Width | 80 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | True |
| Operation Modes | Access Point, Client, Range Extender, Wi-Fi Router, WISP |
| Mesh | Cudy Mesh |
| Mesh Backhaul | Wired Backhaul, Wireless Backhaul |
| Multi-Band Backhaul | True |
| WAN Mode | DHCP, L2TP, PPPOE, PPTP, Static IP |
| IP Versions | IPv4/IPv6 |
| IPv6 Protocols | 464XLAT, DS-Lite, Dynamic (SLAAC/DHCPv6), MAP-E, Passthrough, Static (Fixed IP) |
| IPTV/VLAN | Bridge, IPTV VLAN, Tag VLAN, VoIP VLAN |
| TTL Customization | Custom, Extend, Spoof |
| IGMP | IGMP Proxy, IGMP Snooping |
| Forwarding | DMZ, Port Forwarding, Port Triggering, UPnP |
| Firewall | Block PING, DoS Protection, SPI Firewall |
| Application Layer Gateway | FTP Passthrough, H323 Passthrough, IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, RTSP Passthrough, SIP Passthrough, TFTP Passthrough |
| VPN Server | IPsec, L2TP, OpenVPN, PPTP, WireGuard, Zerotier |
| VPN Client | IPsec, L2TP, OpenVPN, PPTP, WireGuard, Zerotier |
| OpenVPN Client Performance | UL/DL: 22 / 24.7 Mbps |
| OpenVPN Server Performance | UL/DL: 22 / 20.9 Mbps |
| WireGuard Client Performance | UL/DL: 142 / 233.9 Mbps |
| WireGuard Server Performance | UL/DL: 213 / 152 Mbps |
| DNS Options | DNS over TLS, Manual DNS, Override Clients' DNS, Rebind Protection |
| DNS over TLS Providers | Cloudflare, Custom, Google, Quad9 |
| Wake on LAN | True |
| Max Concurrent VPN Tunnels | IPSec: 20, OpenVPN: 16, PPTP/L2TP: 16 |
| LED | System, Speed/Link/ACT of Ethernet Port |
| Physical Buttons | Reset Button, WPS Button |
| Dimensions | Φ110×154.5 mm |
| Dimensions Inches | Φ4.33×6.08 inches |
| Product Weight | 291.2 g (10.27 oz.) |
| Operating Temperature | 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) |
| Storage Temperature | -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) |
| Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 95% non-condensing |
| Certifications | CE, FCC |
| Package Content | Ethernet Cable, Power Adapter, M1300 |
