2MP Dahua HDCVI Dome Cameras / 2MP Dahua HDCVI Varifocal Dome Cameras / CCTV / Dahua / HD Dome Cameras / HDCVI Camera / Lite Series
SKU: SKU-075

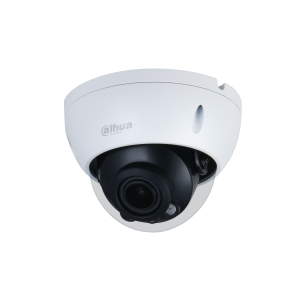

Dahua DH-HAC-HDBW1200RP-Z is a 2MP HDCVI IR dome camera designed for dependable everyday surveillance in commercial and residential environments. It delivers Full HD video and supports HDCVI transmission, which helps users upgrade or maintain existing coaxial based systems while keeping image quality strong and installation practical.
This model is built with a motorized vari focal lens, giving installers greater flexibility when adjusting the viewing area for entrances, corridors, perimeters, and other critical spaces. Its dome form factor suits locations where a compact and protective camera design is preferred.
The camera also supports infrared illumination for round the clock monitoring, helping maintain visibility in darker scenes. With weather resistant and vandal resistant construction, it is well suited to installations that require a balance of image clarity, installation versatility, and durable physical protection.
| Image Sensor | 1/2.7 inch CMOS |
|---|---|
| Scanning System | Progressive |
| Effective Pixels | 2MP, 1920(H) x 1080(V) |
| Electronic Shutter Speed | NTSC: 1/30s to 1/100000s, PAL: 1/25s to 1/100000s |
| S/N Ratio | >65dB |
| Minimum Illumination | 30IRE, 0.02Lux/F1.7, 0Lux IR on |
| Fill Light Working Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto, manual |
| IR LED Number | 2 |
| Pan Range | 0° to 355° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 355° |
| Lens Type | Motorized vari-focal |
| Auto Focus | N/A |
| Mount Type | φ14 |
| Focal Length | 2.7 mm to 12 mm |
| Max. Aperture | F1.7 |
| Field of View | Diagonal: 38° to 125°, Horizontal: 33° to 102°, Vertical: 19° to 53° |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.2 m (3.9 ft) |
| DORI Distance | 2.7 mm: Detect 49.7 m, Identify 5 m. 12 mm: Detect 82.8 m, Identify 8.3 m, Observe 19.9 m, Observe 33.1 m, Recognize 16.6 m, Recognize 9.9 m |
| Frame Rate | 720P at 25/30 fps, 720P at 25/30 fps. TVI: 1080P at 25/30 fps, 720P at 50/60 fps. AHD: 1080P at 25/30 fps, 720P at 50/60 fps. CVBS: 960H, CVI: 1080P at 25/30 fps |
| Resolution | 1080p, 720p, 960H |
| BLC | BLC, DWDR, HLC |
| White Balance | Auto, manual |
| Gain Control | Auto, manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off, on |
| Privacy Masking | 8 areas, Off, on |
| Video Output | AHD, CVBS by one BNC port, TVI, Video output choices of CVI |
| Power Supply | 12V ±30% DC |
| Power Consumption | IR on), Max 6.3W (12V DC |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F), <95% non-condensation |
| Storage Temperature | -30°C to +60°C (-22°F to 140°F), <95% non-condensation |
| Protection Grade | IP67, IK10 |
| Casing | Plastic dome cover plus metal upper casing plus metal pedestal |
| Camera Dimensions | φ122.0 mm x 88.9 mm (φ4.80 in x 3.50 in) |
| Net Weight | 0.44 kg (0.97 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
