SKU: NVR4108HS-4KS2

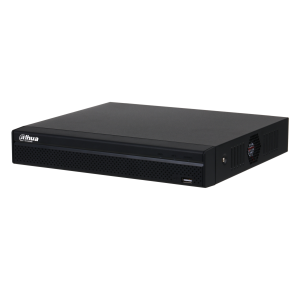

Dahua NVR4108HS-4KS2 is a compact network video recorder built for IP surveillance systems that need dependable 4K capable recording in a space saving format. It is designed for installations that want efficient video management, smooth local or web based operation, and broad compatibility with supported network cameras.
This recorder delivers strong everyday performance for small to mid sized surveillance deployments, helping users capture clear footage while benefiting from advanced compression technologies that reduce storage and bandwidth demands. Its support for simultaneous display outputs and straightforward playback functions makes it well suited for business and property security applications.
As part of Dahua's Lite series, the unit focuses on practical performance, remote accessibility, and reliable recording quality. It can serve as a primary recorder, edge storage point, or backup component within a wider surveillance setup, making it a flexible choice for users who need an affordable and capable NVR platform.
| Model | NVR4108HS-4KS2 |
|---|---|
| Type | 8 Channel Compact 1U 4K & H.265 Lite Network Video Recorder |
| Series | Lite Series |
| Main Processor | Industrial embedded micro-processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| Access Channel | 8 |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding |
| Resolution | 1.3MP, 1080p, 3MP, 4MP, 5MP, 6MP, 720p, 8MP, and more, D1 |
| Decoding Capability | 8 channels@1080p (30 fps) |
| HDMI Output Resolution | 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
| VGA Output Resolution | 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Multi-screen Display | 1/4/8/9 |
| Third-party Camera Access | ONVIF, Arecont, Axis, Canon and more, Panasonic, Pelco, Samsung, Sony |
| Video Compression | Smart H.265+; Smart H.264+; H.265; H.264 |
| Audio Compression | PCM; G.711A; G.711U; G.726 |
| Network Protocol | and more); P2P, DVR, HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, NVS |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF profile T/S/G; CGI; SDK |
| Browser | Chrome; IE9 or later; firefox |
| Multi-channel Playback | 1/4/9 |
| Record Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
| Storage Method | Local HDD and network |
| Backup | USB device |
| Playback Function | Play; pause; stop; fast forward; fast backward; rewind; play by frame; full screen; backup (cut/file); partially enlarge; audio on/off |
| Disk Group | Yes |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
| Intelligent Alarm | Perimeter protection; SMD; people counting; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
| Audio Input | 1 channel, RCA connector |
| Audio Output | 1 channel, RCA connector, which support voice intercom output |
| HDD | up to 10 TB for a single HDD, 1 SATA III port |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI Port | 1 |
| VGA Port | 1 |
| Network Interface | 1 independent 100 Mbps ethernet port |
| Power Supply | 12V/2A DC |
| Power Consumption | < 6.3W (without HDD) |
| Product Weight | 0.8 kg (1.76 lb) (without HDD) |
| Product Dimensions | 260.0 mm × 232.3 mm × 47.6 mm (10.2" × 9.1" × 1.9") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity | 10% to 93% RH |
| Storage Humidity | 30% to 85% RH |
| Operating Altitude | 000 m (9, 3, 843 ft) |
| Certifications | CE: EN55032; EN55024; EN50130-4; EN60950-1, FCC: Part 15 Subpart B; ANSI C63.4-2014, UL: UL 60950-1 |
