SKU: DH-HAC-T1A21P

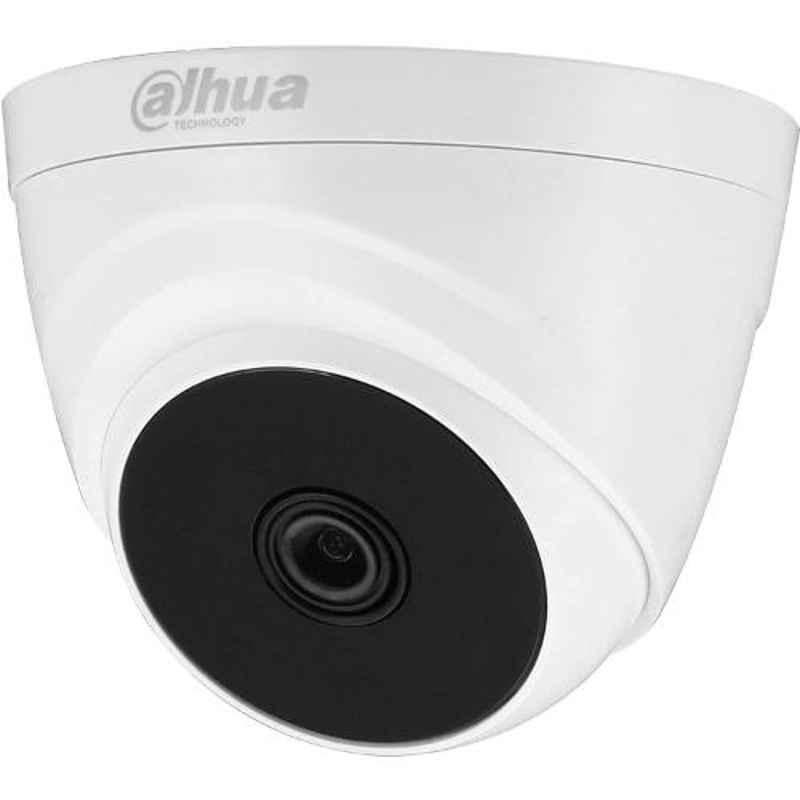

Dahua DH-HAC-T1A21P is a compact 2MP HDCVI dome camera designed to deliver dependable everyday video surveillance for homes, shops, offices, and other indoor monitoring spaces. Its eyeball style housing makes it easy to position the viewing angle during installation while maintaining a clean, discreet appearance.
This camera is built for consistent day and night monitoring with Smart IR support that helps maintain image clarity in low light conditions. The camera also supports multiple video standards, which gives installers flexibility when integrating it into compatible analog security systems.
As part of Dahua's value focused surveillance range, this model offers a practical balance of image quality, installation flexibility, and broad recorder compatibility. It is a suitable choice for users seeking an affordable Full HD CCTV camera from an established security brand.
| Product Type | 2MP HDCVI Fixed-focal Eyeball Camera |
|---|---|
| Model | DH-HAC-T1A21P |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Color | White |
| Camera Type | Dome Camera |
| Image Sensor | 2 MP CMOS |
| Max Resolution | 1920 (H) × 1080 (V) |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s to 1/100000 s; NTSC: 1/30 s to 1/100000 s |
| Min. Illumination | 0.02 lux@F2.0 (Color, 30 IRE); 0 lux (Illuminator on), 30 IRE); 0.002 lux@F2.0 (B/W |
| S/N Ratio | >65 dB |
| Illumination Distance | 20 m (65.62 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR light) |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 100°; V: 54°; D: 117°; 3.6 mm: H: 80°; V: 43°; D: 94°; 6 mm: H: 43°; V: 24°; D: 50° |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft); 3.6 mm: 0.8 m (2.62 ft); 6 mm: 2.8 m (9.19 ft) |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 78°; Rotation: 0° to 360° |
| Video Frame Rate | CVI, NTSC: 1080p@30 fps; AHD, NTSC: 1080p@30 fps; CVBS, NTSC: 1080p@30 fps; TVI, NTSC: 960H, PAL: 1080p@25 fps; AHD, PAL: 1080p@25 fps; CVI, PAL: 1080p@25 fps; TVI, PAL: 960H; CVBS |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; DWDR |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | IR on), Max 2.3 W (12 VDC |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Anti-corrosion Level | Basic Protection |
| Casing Material | Plastic |
| Product Dimensions | Φ85.4 mm × 68.8 mm (Φ3.36 in × 2.71 in) |
| Width | 85.4 mm |
| Height | 68.8 mm |
| Net Weight | 0.09 kg (0.20 lb) |
| Gross Weight | 0.13 kg (0.29 lb) |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B |
