CCTV Surveillance / Full-color
SKU: SKU-069

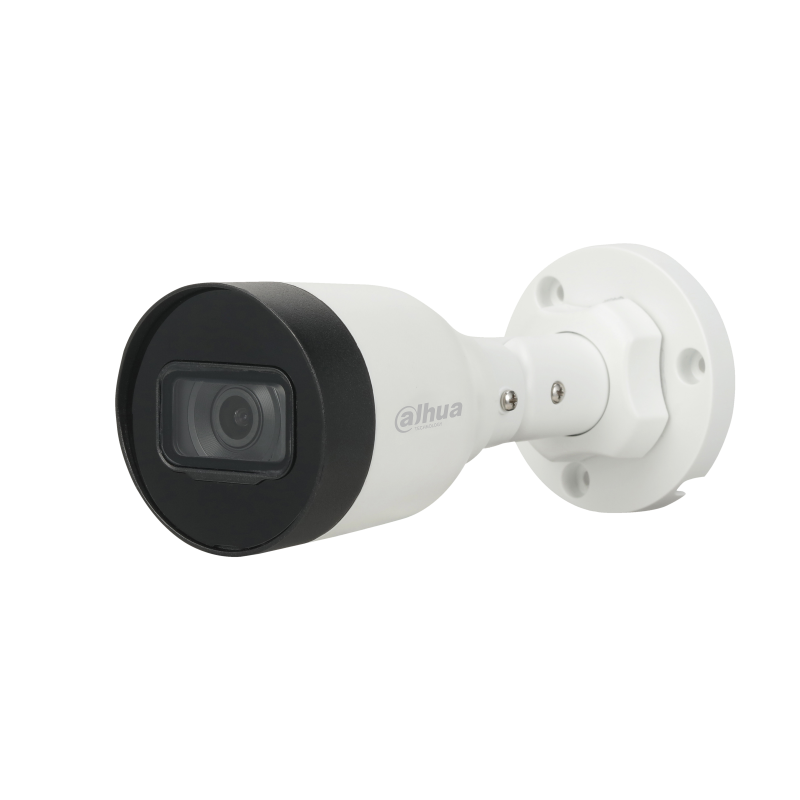

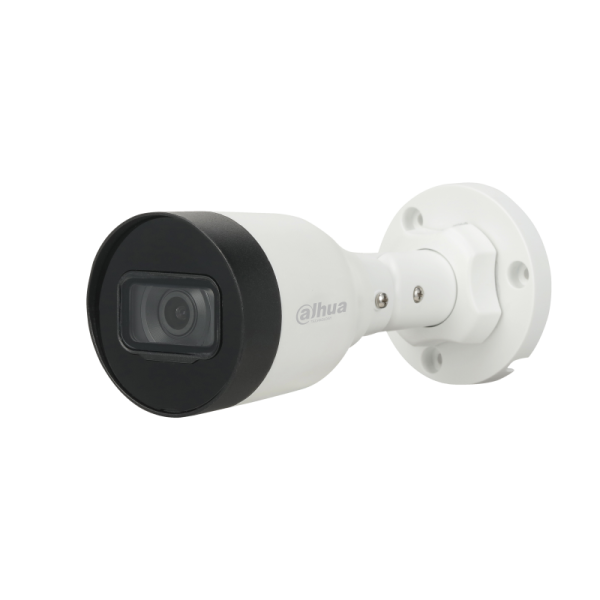

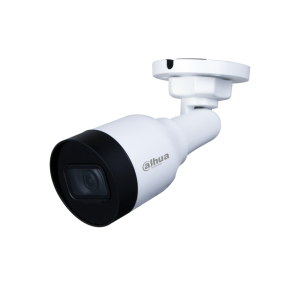

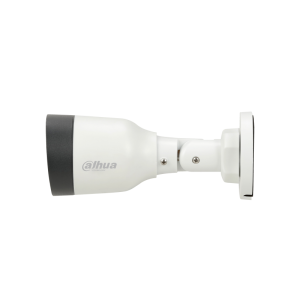

The Dahua DH-IPC-HFW1239S1P-LED-S5 is a 2MP full color fixed focal bullet network camera designed for everyday surveillance in homes, shops, and small business environments.
It is built to deliver clear color video around the clock, using a high performance sensor and warm light illumination to improve scene visibility in low light conditions.
Its network based design supports efficient video compression for reduced bandwidth and storage use, while PoE support helps simplify installation. The weather resistant housing makes it a practical choice for outdoor monitoring where dependable operation is important.
| Product Type | 2MP Lite Full-color Fixed-focal Bullet Network Camera |
|---|---|
| Model | DH-IPC-HFW1239S1P-LED-S5 |
| Image Sensor | 1/2.7″ 2Megapixel progressive CMOS |
| Effective Pixels | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s to 1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| LED Distance | 2.8 mm: 10 m (32.8 ft), 3.6 mm: 15 m (49.2 ft) |
| LED On/Off Control | Auto/Manual |
| LEDs Number | 1 |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm or 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Pan 110° × Tilt 59° × Diagonal 132°, 3.6 mm: Pan 91° × Tilt 48° × Diagonal 109° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft), 3.6 mm: 1.1 m (3.6 ft) |
| DORI Distance | 2.8 mm: Detect 37.3 m, 3.6 mm: Detect 53.3 m, Identify 3.7 m, Identify 5.3 m, Observe 14.9 m, Observe 21.3 m, Recognize 10.7 m, Recognize 7.5 m |
| Video Compression | H.264, H.264B, H.264H, H.265, MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | 704 × 480 at 1 fps to 30 fps, Main stream: 1920 × 1080 at 1 fps to 25/30 fps, Sub stream: 704 × 576 at 1 fps to 25 fps |
| Stream Capability | 2 streams |
| Resolution | 1.3M (1280 × 960), 1080P (1920 × 1080), 720p (1280 × 720), CIF (352 × 288/352 × 240), D1 (704 × 576/704 × 480), VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps to 6144 Kbps, H.265: 12 Kbps to 6400 Kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto, manual, natural, outdoor, regional custom, street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Smart Light | Yes |
| Image Rotation | 0, 180, 270°, 90 |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network Port | RJ-45 (10/100 Base-T) |
| Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, Multicast, NTP, RTP, RTSP, SMTP, TCP, UDP, IPv4, IPv6 |
| Interoperability | CGI, Genetec, ONVIF (Profile S, P2P |
| User/Host | 20 |
| Edge Storage | Dahua Cloud, FTP |
| Browser | Chrome, Firefox, IE |
| Management Software | DMSS, DSS, Smart PSS |
| Mobile Phone | Android, iOS |
| Certifications | CE-EMC 2014/30/EU, CE-LVD EN62368-1, FCC: 47 CFR FCC Part 15, Subpart B |
| Power Supply | 12V DC, PoE (802.3af) |
| Power Consumption | < 4.8W |
| Operating Conditions | -40°C to +60°C, ≤ 95% RH |
| Storage Temperature | -40°C to +60°C |
| Ingress Protection | IP67 |
| Casing | Metal + plastic |
| Dimensions | 162.6 mm × Φ70 mm (6.4″ × Φ2.8″) |
| Net Weight | 0.22 kg (0.4 lb) |
| Gross Weight | 0.34 kg (0.7 lb) |
