Mesh Wi-Fi Systems / Networking
SKU: M3000(3-PACK)

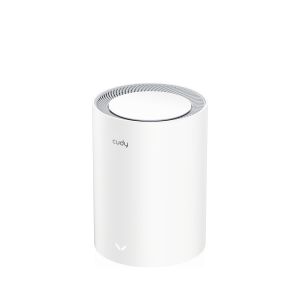

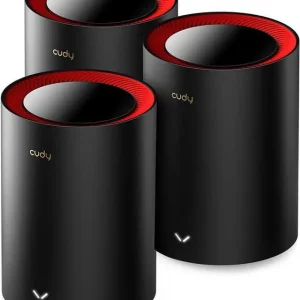

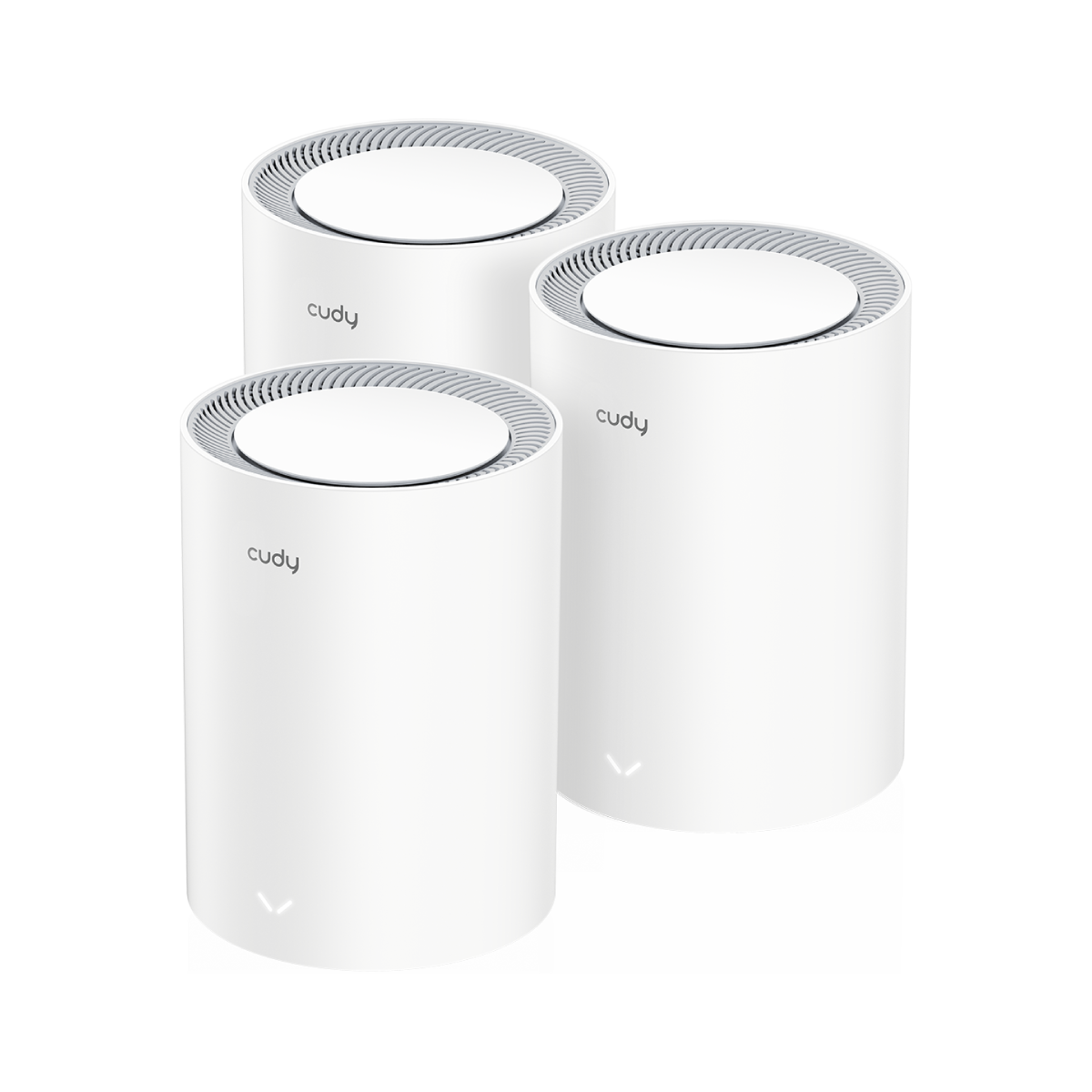

The Cudy M3000 AX3000 2.5G Mesh Wi-Fi 6 System 3-Pack is built to deliver fast, consistent whole home wireless coverage with the convenience of a modern mesh platform.
Designed for households that need strong performance for streaming, gaming, video calls, and everyday connected devices, this three unit system helps maintain a reliable signal as you move from room to room.
Its multi gig ready design gives you a 2.5G WAN connection on each module, making it a strong fit for faster broadband services, while Ethernet backhaul support gives you added flexibility for more stable wired interconnections between nodes.
With Wi-Fi 6 technologies such as OFDMA, MU-MIMO, seamless roaming, and WPA3 security, the M3000 balances speed, efficiency, and coverage for busy home networks.
Cudy app support and built in VPN features add convenient management and advanced networking options, making this system a practical choice for users who want broad coverage with stronger control over their home network.
| Brand | Cudy |
|---|---|
| Wi-Fi Standard | Wi-Fi 6 |
| Installation | Desktop |
| Color | White |
| Model Version | M3000 2.0 |
| Model Number | M3000(3-PACK) |
| Wireless Standard Compatibility | 802.11ax/ac/a/b/g/n |
| Wi-Fi Speed | AX3000 |
| 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps |
| Combined Throughput | Up to 2976 Mb/s |
| Bands | 2.4 GHz and 5 GHz, Dual-Band |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams |
| Wi-Fi Antennas | 5× Internal |
| 5 GHz FEM or PA/LNA | 3× Internal |
| 2.4 GHz FEM or PA/LNA | 2× Internal |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency | BSS Color, MU-MIMO, OFDMA |
| Max Capacity | 512 |
| Recommended Client Upper Limit | 200 |
| Max Wi-Fi Channel Width | 160 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| WPS | Yes |
| Indoor Coverage Reference | 3 Pack: 270 m² (2900 sq ft) |
| Range Performance | Max: 220 m (722 ft) |
| Wall Performance | or one concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4''), Two wooden walls with thickness < 10 cm (4'') |
| 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 1 |
| Ethernet Notes | The 2.5G port is the WAN port, the Gigabit port is LAN port |
| Operation Modes | Access Point, Client, Range Extender, Wi-Fi Router, WISP |
| Mesh | Cudy Mesh |
| Mesh Backhaul | Ethernet Backhaul, Multi-Band Simultaneous Backhaul |
| CPU | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 |
| Chipset | MT7981BA+MT7976CN+RTL8221B |
| VPN Server | IPsec, L2TP, OpenVPN, PPTP, WireGuard, Zerotier |
| VPN Client | IPsec, L2TP, OpenVPN, PPTP, WireGuard, Zerotier |
| DNS Options | DNS over TLS, Manual DNS, Override Clients' DNS, Rebind Protection |
| DNS over TLS Providers | Cloudflare, Custom, Google, Quad9 |
| Firewall | Block PING, DoS Protection, SPI Firewall |
| Application Layer Gateway | FTP Passthrough, H323 Passthrough, IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, RTSP Passthrough, SIP Passthrough, TFTP Passthrough |
| Forwarding | DMZ, Port Forwarding, Port Triggering, UPnP |
| IGMP | IGMP Proxy, IGMP Snooping |
| Parental Controls | Offline Time, Online Time, Pause the Internet, Profiles Settings, Web Filter |
| Per-Device Management | Device Rename, Internet On/Off, Online Time Schedule, VPN On/Off |
| All Devices Management | IP/MAC Binding, MAC Filter, Wi-Fi Time Schedule |
| Local Control Method | App Control, Config Web Page |
| Remote Control Method | App Control, Config Page via HTTPS, TR069/TR098/TR111/TR143/TR181 |
| Firmware Upgrade | App (Over the Air), Local Update, Online Update |
| Reliability | Backup and Restore, Timed Reboot |
| Diagnostic Tools | Diagnosis, NSLookup, Ping, System Log, Traceroute |
| Dimensions | Φ110 × 154.5 mm, Φ4.33 × 6.08 inches |
| Product Weight | 360 g (12.7 oz.) |
| Operating Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Certifications | CE, FCC |
| Package Contents | Installation Guide, Ethernet Cable, M3000, Power Adapter |
