IP CCTV / NVR for IP cameras / NVR5 Series
SKU: SKU-098

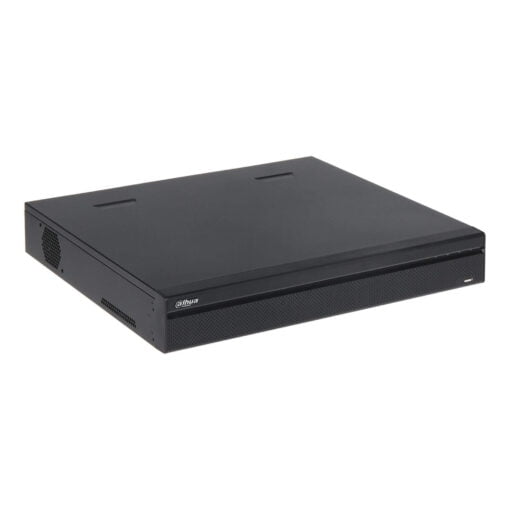

Dahua DHI-NVR5432-4KS2 is a professional network video recorder designed for larger IP surveillance deployments that need dependable performance, broad compatibility and efficient video management. It is built for multi camera environments and supports advanced compression technologies that help reduce storage and bandwidth demands while maintaining clear recorded footage.
This recorder is well suited to commercial and project based installations where stable recording, smooth remote access and flexible integration are important. Its open architecture and ONVIF support make it easier to work with a wide range of network cameras and surveillance systems, while its high throughput helps it manage many video streams at once.
The unit is designed to deliver practical everyday usability for installers and operators. With support for high resolution viewing and playback, multiple video output options, alarm integration and extensive storage expansion through four hard drive bays, it provides a strong foundation for a scalable and capable security recording system.
| Product Type | 32 Channel 1.5U 4HDDs 4K & H.265 Pro Network Video Recorder |
|---|---|
| Model | DHI-NVR5432-4KS2 |
| IP video inputs | 32 channels |
| Video Compression | Smart H.265+/Smart H.264+/H.265/H.264/MJPEG |
| H.265 auto switch | Supported |
| Incoming Bandwidth | Max 320 Mbps |
| Live View and Playback Resolution | Up to 24 MP |
| Recording Resolution | Up to 12 MP for preview and playback |
| Fisheye Dewarping | 1-channel fisheye dewarping, AI by NVR |
| AI by Camera | ANPR, crowd distribution, face detection and recognition, Heat map, People counting, Perimeter Protection, SMD Plus, stereo analysis, video metadata |
| Video outputs | 2 HDMI, 2 VGA |
| Display resolution HDMI1 | 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080, 3840 x 2160 |
| Display resolution VGA1 | 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080 |
| Display resolution HDMI2 or VGA2 | 1920 x 1080 |
| Network Interface | 10/100/1000 Mbps, 2 RJ-45 ports |
| Audio Input | 1 channel, RCA |
| Audio Output | 2 channels, RCA |
| Two-way Talk | Supported |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| HDD Bays | 4 SATA III ports |
| Maximum HDD capacity | Up to 10 TB for a single HDD |
| eSATA | 1 eSATA |
| RS-232 | 1 channel, used to debug and pass through serial data |
| RS-485 | 1 channel, supports multiple protocols, used to control PTZ |
| USB | 1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| Power Supply | 100V to 240V AC, 50 Hz to 60 Hz, Single |
| Power Consumption | < 16.7 W without HDD |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | 0°C to +40°C |
| Operating Humidity | 10% to 93% RH |
| Storage Humidity | 30% to 85% RH |
| Operating Altitude | 000 m, 3 |
| Certifications | ANSI C63.4-2014; UL: UL 60950-1, CE EN55032, EN50130-4, EN55024, EN60950-1; FCC: Part 15 Subpart B |
| Product Dimensions | 440 mm x 412.2 mm x 76.0 mm |
| Net Weight | 4.3 kg without HDD |
| Gross Weight | 7 kg without HDD |
| Package dimensions | 522 mm x 492 mm x 200 mm |
