SKU: SKU-084

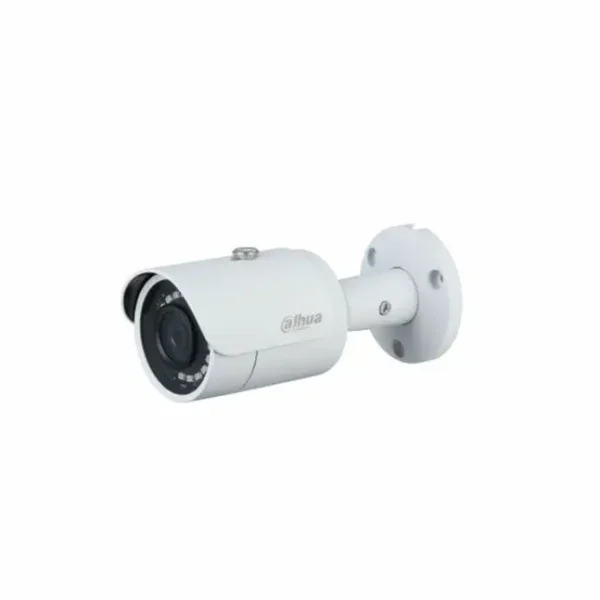

Dahua DH-IPC-HFW1431SP is a compact 4MP network bullet camera built for dependable everyday surveillance in small to mid size installations. Its progressive CMOS sensor delivers detailed video, while the fixed focal lens design keeps installation straightforward and reliable.
The camera is designed to maintain useful image quality in mixed and difficult lighting. Dahua includes wide dynamic range processing, day and night switching, noise reduction, and Smart IR support to help preserve scene detail during bright daylight, backlit entry points, and low light monitoring conditions.
For efficient system performance, the camera supports H.265 and H.264 compression, helping reduce bandwidth and storage requirements without sacrificing practical image quality. Network viewing support across web, software, and mobile platforms also makes it suitable for remote monitoring in homes, shops, offices, and general perimeter applications.
Its outdoor ready housing and PoE capability make it an easy fit for professional security deployments where simple cabling, weather resistance, and stable operation are important. The result is a cost effective Dahua IP camera that balances clarity, durability, and ease of integration.
| Product Type | 4MP IR Mini-Bullet Network Camera |
|---|---|
| Manufacturer Part Number | DH-IPC-HFW1431SP |
| Image Sensor | 1/3” 4Megapixel progressive CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 to 1/100000s, Auto/Manual |
| Minimum Illumination | 30IRE, 0.08Lux/F2.0(Color, 0.3Lux/F2.0(Color, 0Lux/F2.0(IR on), 1/30s, 1/3s |
| S/N Ratio | More than 50dB |
| IR Distance | Up to 30m (98ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 18 |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm, 3.6 mm optional |
| Max. Aperture | F2.0/F2.0 |
| Angle of View | H:104°/87°, V:57°/48° |
| Focus Control | Fixed |
| DORI Distance 2.8 mm | Detect 63m, Identify 6m, Observe 25m, Recognize 13m |
| DORI Distance 3.6 mm | Detect 80m, Identify 8m, Observe 32m, Recognize 16m |
| Pan/Tilt/Rotation | Pan: 0° to 360°, Rotation: 0° to 360°, Tilt: 0° to 90° |
| Event Trigger | Illegal access, IP address conflict, Motion detection, Network disconnection, Scene changing, Storage anomaly, Video tampering |
| IVS | Intrusion, Tripwire |
| Video Compression | H.265/H.264H/MJPEG(Sub Stream) |
| Smart Codec | H.265+/H.264+ |
| Streaming Capability | 2 Streams |
| Resolution | 1080P(1920 x 1080), 3M(2304 x 1296), 4M(2688 x 1520), 720P(1280 x 720), CIF(352 x 288/352 x 240), D1(704 x 576/704 x 480), VGA(640 x 480) |
| Frame Rate | 3M(1 to 25/30fps); Sub Stream: D1(1 to 25/30fps), Main Stream: 4M(1 to 20fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32K to 10240Kbps, H.265: 12K to 8448Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC Mode | BLC / HLC / WDR(120dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization | N/A |
| Smart IR | Support |
| Digital Zoom | 16X |
| Flip | 0°/90°/180°/270° |
| Mirror | Off/On |
| Privacy Masking | rectangle, Off / On (4 Area |
| Audio Compression | N/A |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IEEE 802.1X, IGMP, IPV4/V6, Multicast, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP, TLS, UDP, UPnP |
| Interoperability | API, ONVIF Profile S&G |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users / 20 Users |
| Edge Storage | Local PC for instant recording, NAS |
| Web Viewer | Chrome, Firefox, IE, Safari |
| Management Software | DMSS, DSS, Smart PSS |
| Smart Phone | Android, iOS |
| Certifications | CE (EN 60950:2000), FCC: FCC Part 15 Subpart B, UL UL60950-1 |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Power Supply | DC12V, PoE (IEEE 802.3af) (Class 0) |
| Power Consumption | < 5.5W |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F), less than 95% RH |
| Storage Conditions | -30° C to +60° C (-22° F to +140° F), less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Casing | Metal+Plastic |
| Dimensions | Φ70mm x 164.7mm (2.76 x 6.49 inches) |
| Net Weight | 0.38Kg (0.84lb) |
