SKU: SKU-093

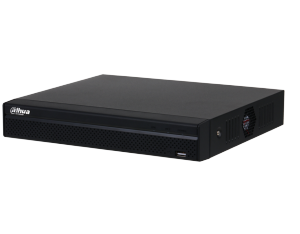

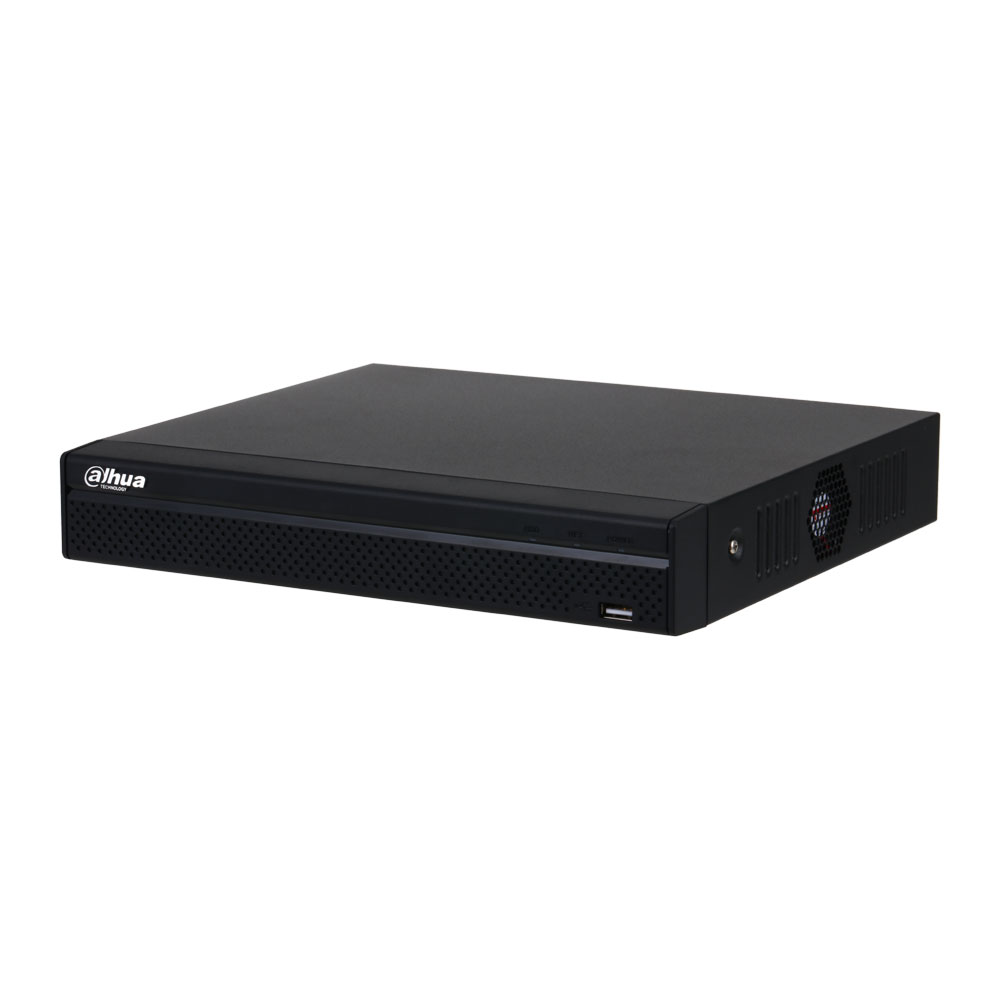

The Dahua NVR1104HS-P-S3/H is a compact 4 channel network video recorder designed for small surveillance installations that need dependable recording and straightforward deployment.
Its built in PoE capability helps simplify camera connection and power delivery, making it a practical choice for homes, shops, offices, and other light commercial environments.
The recorder supports high resolution IP camera streams and efficient H.265 and H.264 compression, helping users maintain clear recorded video while managing storage usage effectively.
With local HDMI and VGA output, mobile access support, and browser based operation, it offers flexible monitoring and playback for users who want convenient control of their security system.
| Operating System | Embedded Linux |
|---|---|
| Main Processor | Industrial-grade embedded processor |
| Operation Interface | Web/operating in local GUI |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capability | 1-ch@8MP(30FPS) or 1-ch@5MP(30FPS) or 2-ch@4MP(30FPS) or 2-ch@3MP(30FPS) or 4-ch@1080P(30FPS) |
| Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Multi-screen Display | 4 |
| Third-party Camera Access | ONVIF, RTSP |
| Video Compression | Smart H.265; H.265; Smart H.264; H.264 |
| Audio Compression | PCM/G711A/G711U/G726/AAC |
| Network Protocol | DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NTP, P2P, RTSP, TCP/IP, UDP |
| Mobile Phone Access | gDMSS(Android), iDMSS(iOS) |
| Access Standard | CGI, ONVIF(profile T/profile S/profile G), SDK |
| Browser | Chrome, Firefox, IE9 or above |
| Multi-channel Playback | Up to 4 channels playback |
| Record Mode | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | audio on/off, backup, fast backward, fast forward, full screen, partially enlarge, pause, Play, play by frame, rewind, stop |
| General Alarm | IPC alarm, Motion detection, PIR alarm, privacy masking, video loss |
| Anomaly Alarm | Front-end device going offline, full storage, IP conflict, login lock, MAC conflict, network security anomaly, storage error |
| Alarm Linkage | log, preset, snapshot, tour, Video recording |
| HDD | 1 SATA 2.0 port, up to 8 TB for a single HDD |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| RCA Input | 1 |
| RCA Output | 1 |
| Alarm | None |
| Network Port | 1 RJ-45 port (10/100 Mbps), 4 RJ-45 ports with PoE power supply (10/100 Mbps) |
| PoE Ports | 4 x PoE+ ports |
| PoE Power | 36W in total, Max 25.5W each port |
| Power Supply | 1.25A/1.22A, DC48V/53V |
| Power Consumption | the maximum output power of a single port is 25.5W, Total output of NVR is ≤ 10W (without HDD), total output power of PoE is 36W |
| Net Weight | 0.84 kg (1.85 lb) |
| Product Dimensions | 260 mm × 225 mm × 47.6 mm (W × L × H) |
| Operating Temperature | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
| Operating Humidity | 10% to 93% |
| Storage Humidity | 30% to 85% |
| Operating Altitude | 3000 m (9843 ft) |
| Installation | Desktop mounting |
| Certification | CE/FCC |
