5MP / Analog Camera / Cooper Series / HDCVI Cameras
SKU: DH-HAC-B4A51P-VF

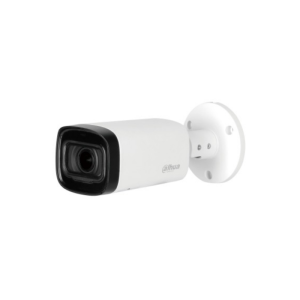

Dahua DH-HAC-B4A51P-VF is a 5MP HDCVI IR bullet camera designed to deliver high quality surveillance while simplifying upgrades on existing coaxial infrastructure. It combines detailed imaging with a vari-focal lens, making it suitable for a wide range of small and medium business security applications.
The camera offers flexible scene coverage and dependable day to night monitoring, with Smart IR support to help maintain image visibility in low light conditions. Its switchable HD and SD output also makes integration easier when working with mixed or legacy systems.
Built for dependable operation, the camera uses a rugged aluminium housing with weather resistant protection for indoor or outdoor installation. This makes it a practical choice for entrances, perimeters, parking areas, and general purpose CCTV deployments where reliability and installation flexibility are important.
| Model | DH-HAC-B4A51P-VF |
|---|---|
| Camera Type | 5MP HDCVI IR Bullet Camera |
| Series | Cooper Series |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 2592(H)×1944(V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s |
| Minimum Illumination | 30IRE, 0.04Lux/F1.8, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 40m (131ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 2 |
| Lens Type | Vari-focal lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.7-12mm |
| Max. Aperture | F1.8 |
| Angle of View | H: 93°~30°, V: 68°~22° |
| Focus Control | Manual |
| Close Focus Distance | 31.50'', 800mm |
| Pan | 0° ~ 360° |
| Tilt | 0° ~ 87° |
| Rotation | 0° ~ 360° |
| Resolution | 5MP (2592×1944) |
| Frame Rate | 20fps@5MP, 25/30@1080P, 25/30fps@4MP |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto; Manual |
| Smart IR | Auto / Manual |
| DORI Detect Distance | 198m (650ft) tele, 67m (221ft) wide |
| DORI Observe Distance | 27m (89ft) wide, 79m (259ft) tele |
| DORI Recognize Distance | 13m (43ft) wide, 39m (128ft) tele |
| DORI Identify Distance | 19m (62ft) tele, 6m (20ft) wide |
| Certifications | ANSI C63.4-2014, CE EN55032, EN50130-4, EN55024, FCC (CFR 47 FCC Part 15 subpartB |
| Audio Interface | N/A |
| Power Supply | 12V DC ±30% |
| Power Consumption | IR on), Max 5.9W (12V DC |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Casing | Aluminium |
| Dimensions | 209.8mm × 90.4mm × 90.4mm (8.26" × 3.56" × 3.56") |
| Net Weight | 0.59kg (1.30lb) |
| Gross Weight | 0.75kg (1.65lb) |
