Record security systems NVR / Security Systems / WiFi & NETWORKING
SKU: SKU-088

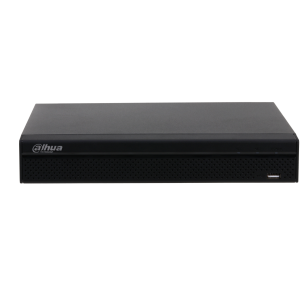

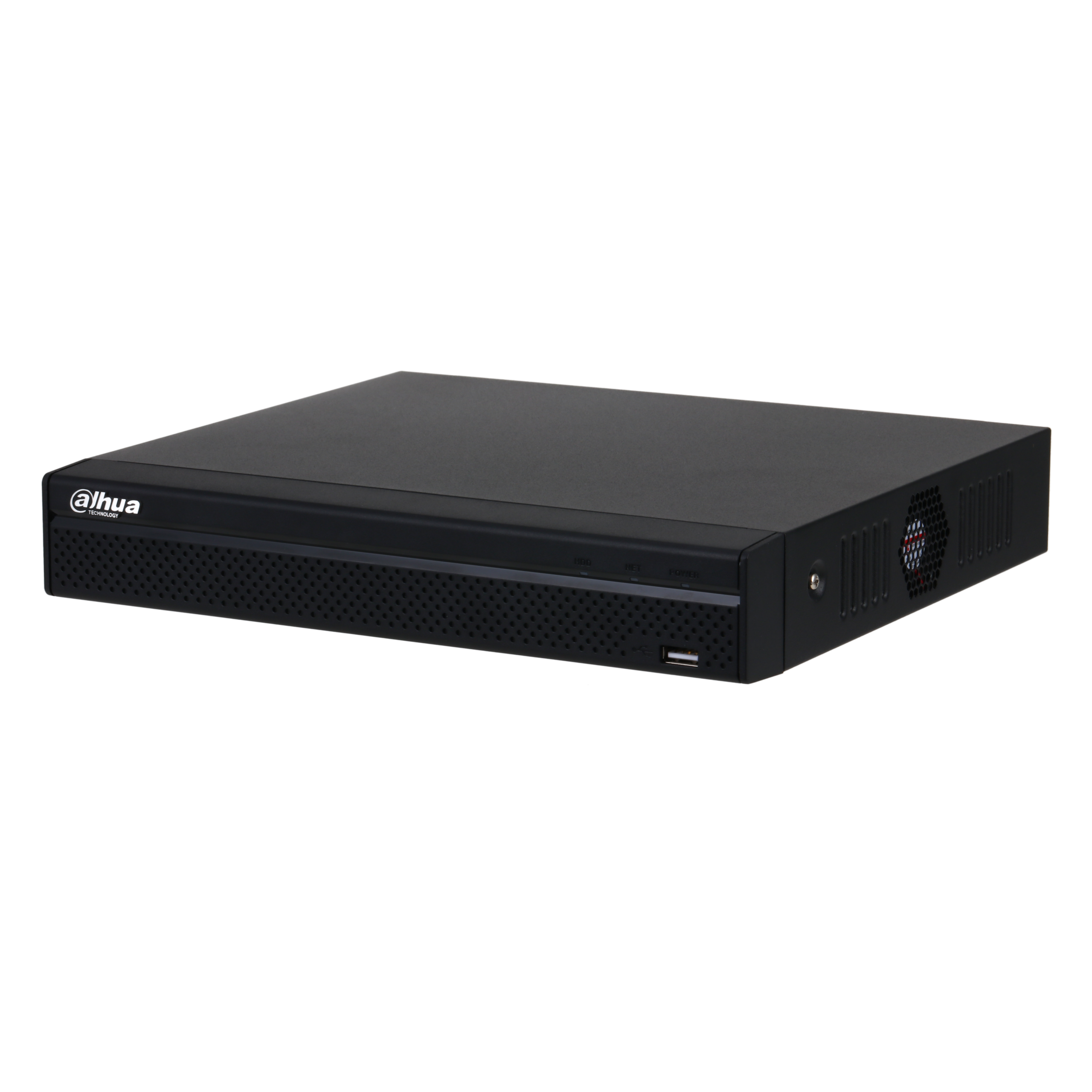

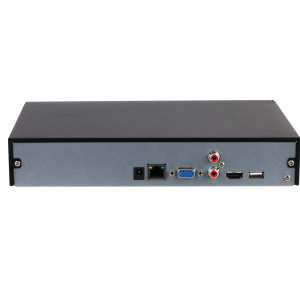

Dahua DHI-NVR4108HS-4KS3 is a compact network video recorder built for reliable everyday surveillance in residential, retail, and small business environments. Its Lite Series design focuses on efficient video management, clear playback, and dependable operation in a space saving 1U form factor.
This recorder supports modern compression and decoding formats, helping users manage storage efficiently while maintaining strong image quality. It is designed to work with high resolution IP cameras, making it a practical choice for installations that require detailed monitoring and straightforward recording performance.
Integrated intelligent functions add more value to routine security tasks. With support for smart motion classification and camera based analytics, the recorder can help improve event awareness and reduce unnecessary alerts, making day to day monitoring more effective.
The overall experience is geared toward simple deployment and control. Whether used as a primary recorder or as part of a broader surveillance setup, it offers a balanced combination of recording capability, AI support, and compact installation flexibility.
| Model | DHI-NVR4108HS-4KS3 |
|---|---|
| Number of Channels | 8 |
| Operating System | Embedded Linux |
| Product Type | 8CH Compact 1U 1HDD Lite Network Video Recorder |
| Main Processor | Industrial-grade processor |
| Operating Interface | Local GUI, Web |
| AI by Recorder | SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Perimeter Protection Performance of AI by Camera | 6 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder | 6 channels |
| Face Recognition Performance of AI by Recorder | 6 channels |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, rain and lighting condition change, reducing false alarms caused by leaves |
| SMD Plus by Camera | 6 channels |
| Decoding Formats | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Max. Decoding Capability | 8 x 1080p@30 fps |
| Bandwidth | 80/80/60 Mbps incoming/recording/outgoing |
| Supported IP Camera Resolution | Up to 12 MP |
| EPTZ | Supported |
| One-click Arming and Disarming | Supported |
| Mounting Type | Desktop/pedestal, rack |
| SATA | Yes |
| Integrated LAN | Gigabit |
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <10 W without HDD |
| Colour | Black |
| Net Weight | 0.81 kg |
| Gross Weight | 1.38 kg |
| Product Dimensions | 260.0 mm x 232.5 mm x 47.6 mm (W x D x H) |
| Packaging Dimensions | 334 mm x 89 mm x 314 mm (W x D x H) |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -20 °C to +60 °C |
| Operating Humidity | 10% to 93% RH, non-condensing |
| Installation | Rack or desktop |
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014 |
| EAN | 6923172570680 |
