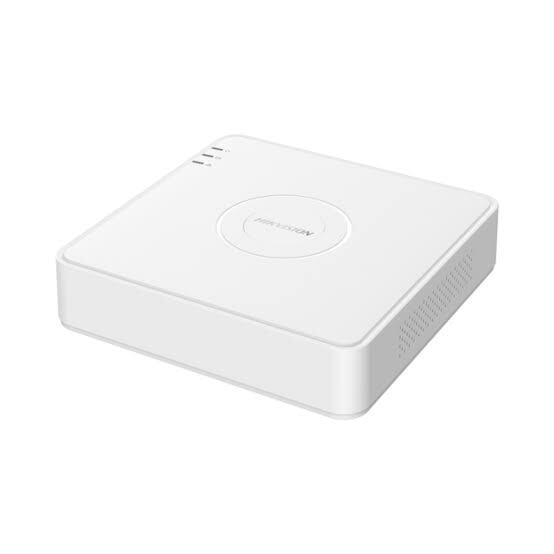

1 Megapixel DVR / 8-Channels / Digital Video Recorder / HDTVI / HGHI Series / Turbo HD 3.0
SKU: DS-7108HGHI-F1
| Audio Input | 1-ch |
|---|---|
| Video Compression | H.264 |
| Analog and HD-TVI Video Input | 75 Ω), 8-ch BNC interface (1.0 Vp-p |
| Supported Camera Types | 1080p/30Hz, 720p/25Hz, 720p/30Hz; AHD input 720p/25Hz, 720p/30Hz; CVBS input supported, HDTVI input 1080p/25Hz |
| Video Input Interface | 75Ω), BNC (1.0 Vp-p |
| Audio Compression | G.711u |
| Audio Input Interface | 1 kΩ), RCA (2.0 Vp-p |
| Two-way Audio | 1 KΩ), 1-ch, RCA (2.0 Vp-p, using audio input |
| HDMI/VGA Output | 1024 × 768 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1920 × 1080 / 60 Hz |
| Recording Resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; when 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N); when 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Stream Type | Video/Video&Audio |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Synchronous Playback | 8-ch |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTPS, NFS, NTP, PPPoE, SADP, SMTP, TCP/IP, UPnP, Hik Cloud P2P, iSCSI |
| Interface Type | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 interfaces |
| Power Supply | 12V DC |
| Consumption | ≤ 12W, without hard disks |
| Working Temperature | -10 ºC to +55 ºC, 14 ºF to 131 ºF |
| Working Humidity | 10% to 90% |
| Dimensions | 200 × 200 × 45 mm, 7.9 × 7.9 × 1.8 inch |
| Weight | ≤ 0.8 kg / 1.8 lb, without hard disks |
